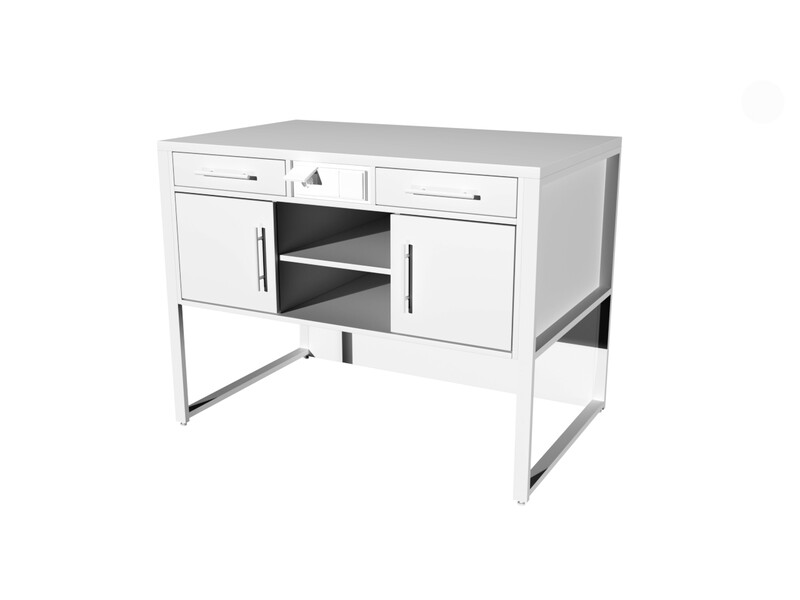

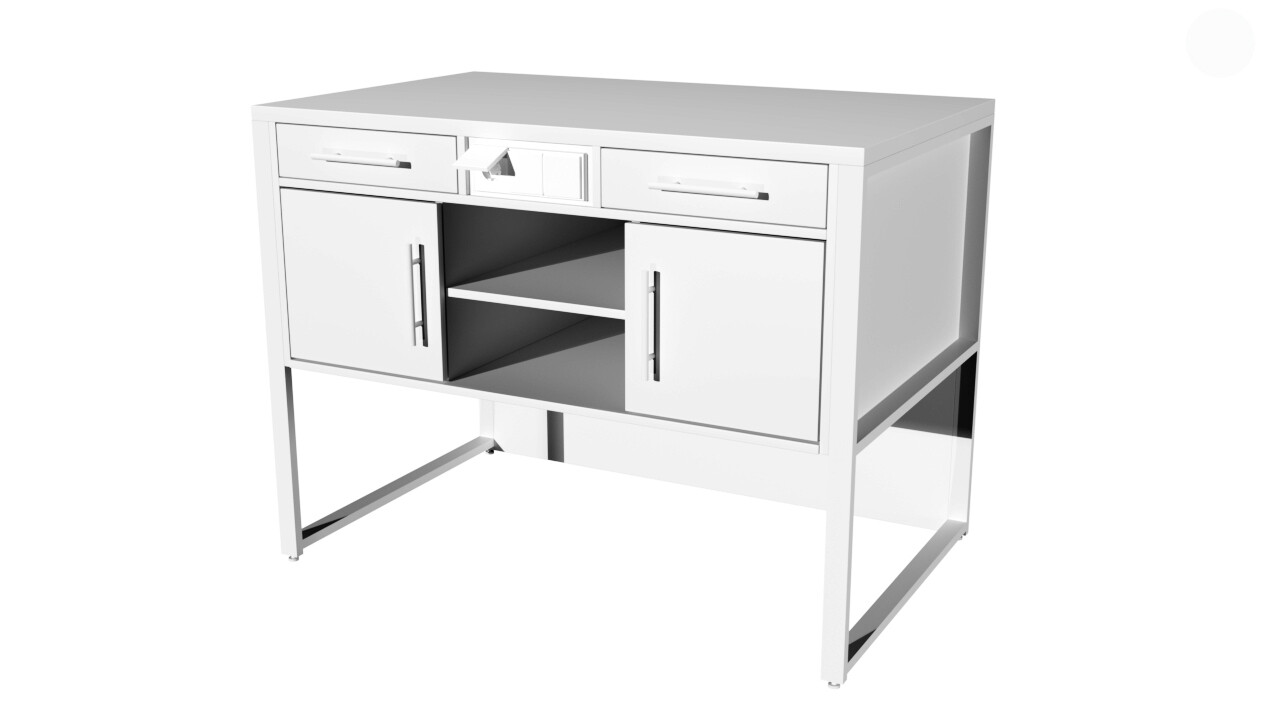

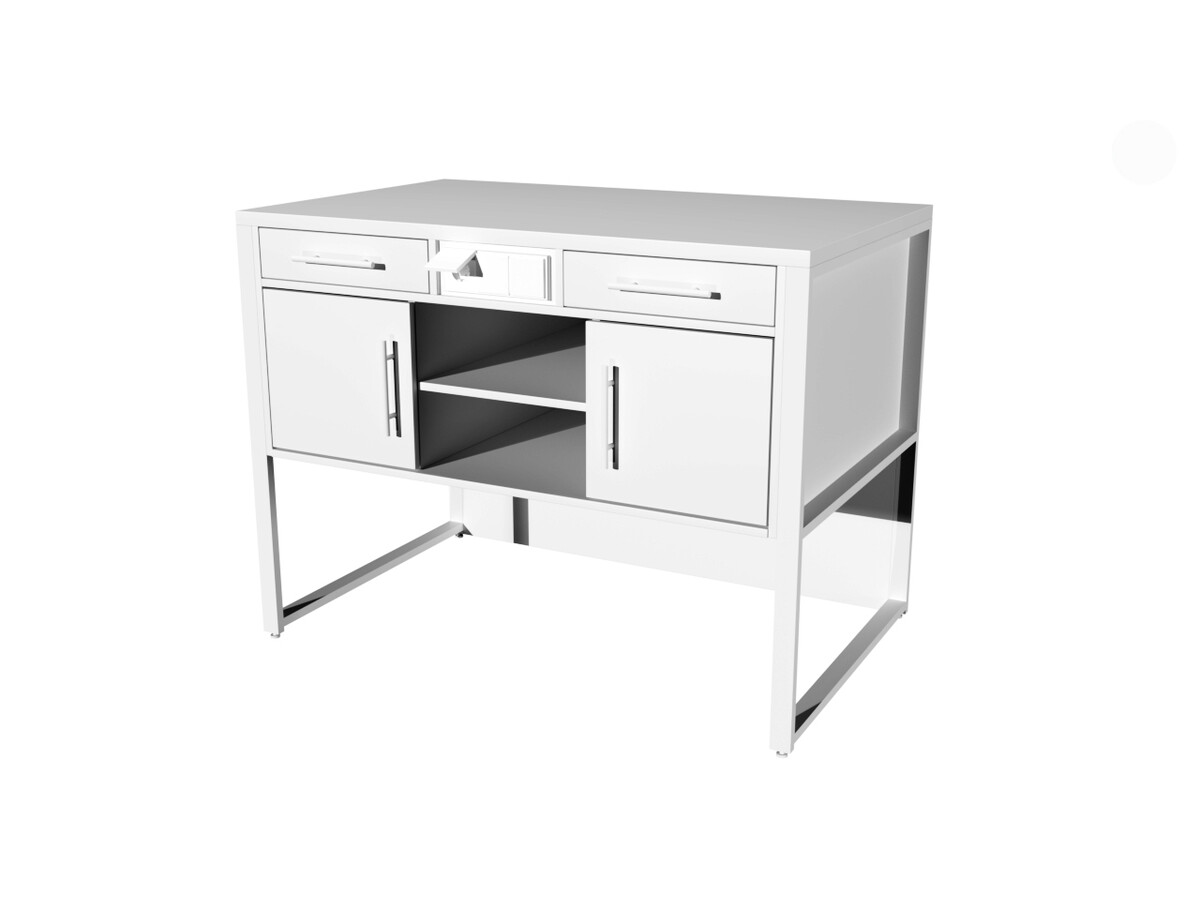

Display table with electrical outlets

The table’s design consists

The table consists of a tabletop, a metal frame, and a suspended cabinet. The frame is connected by the tabletop and the front panel, ensuring the rigidity and durability of the structure.

Under the tabletop, there are:

• two fully extendable drawers with full-extension ball-bearing slides;

• a built-in unit with three electrical power outlets.

The suspended cabinet includes:

• two open shelves, one of which is height-adjustable;

• two fully extendable drawers with full-extension ball-bearing slides;

• one enclosed compartment with a shelf and a hinged door.

The table is equipped with black plastic handles, adjustable feet for leveling on uneven floors, and provisions for floor anchoring.

Technical Specifications

Overall dimensions:

• Width: 1200 mm

• Depth: 750 mm

• Height: 900 mm

Materials

The wooden components are made of 18 mm laminated particle board (LDPB).

The edges of the wooden parts are finished with PVC edging:

• Visible edges: 1.0 mm

• Non-visible edges: 0.5 mm

The metal frame is manufactured from steel tubes:

• Rectangular tube: 40 × 20 × 1.2 mm

• Flat-oval tubes: 30 × 15 × 1.2 mm and 38 × 20 × 1.2 mm

All metal components are protected with a durable powder-coated finish that provides resistance to corrosion and mechanical damage.

Plastic end caps are fitted to the frame legs to protect the floor from damage and reduce the risk of injury.

Equipment

The table is supplied with:

• three integrated electrical power outlets;

• a cable management bracket for routing electrical wiring.

The cable management bracket can be installed in two positions—either in the upper or lower part of the front panel, depending on the user's requirements.

of a tabletop, a metal frame, and a wall-mounted cabinet. The frame is connected to the tabletop and the front panel, ensuring the structure’s rigidity and reliability.

Under the tabletop are:

two full-extension drawers on ball-bearing slides;

a block with three electrical outlets.

The hanging cabinet is equipped with:

two open shelves, one of which is height-adjustable;

two full-extension drawers on ball-bearing slides;

a closed compartment with a shelf and a door.

The table is equipped with black plastic handles, adjustable legs to compensate for uneven floors, and can be secured to the floor.

Technical Specifications

Overall dimensions:

width — 1200 mm;

depth — 750 mm;

height — 900 mm.

Materials:

Wooden components are made of 18 mm thick laminated particleboard.

The edges of the components are finished with PVC edging:

visible surfaces — 1.0 mm;

hidden surfaces — 0.6 mm.

The metal frame is made of steel tubes:

rectangular tube 40×20×1.2 mm;

flat-oval tubes 30×15×1.2 mm and 38×20×1.2 mm.

The metal components have a protective powder-coated finish that is resistant to mechanical damage and corrosion.

Plastic end caps are installed on the frame’s ends to prevent damage to the floor and reduce the risk of injury to users.

Equipment

The table comes equipped with:

three built-in electrical outlets;

a bracket for routing electrical wires.

The bracket can be installed in two positions—
