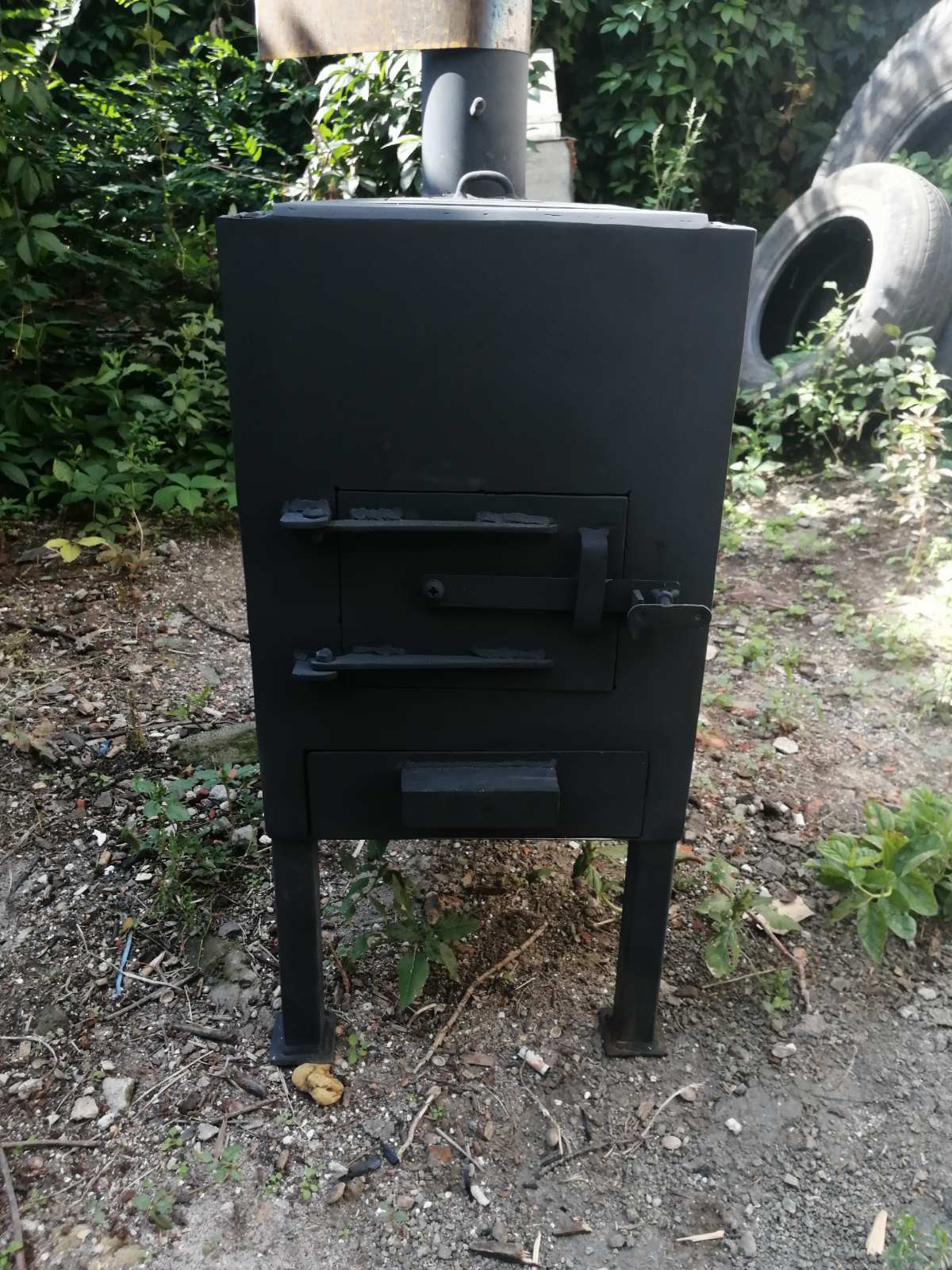

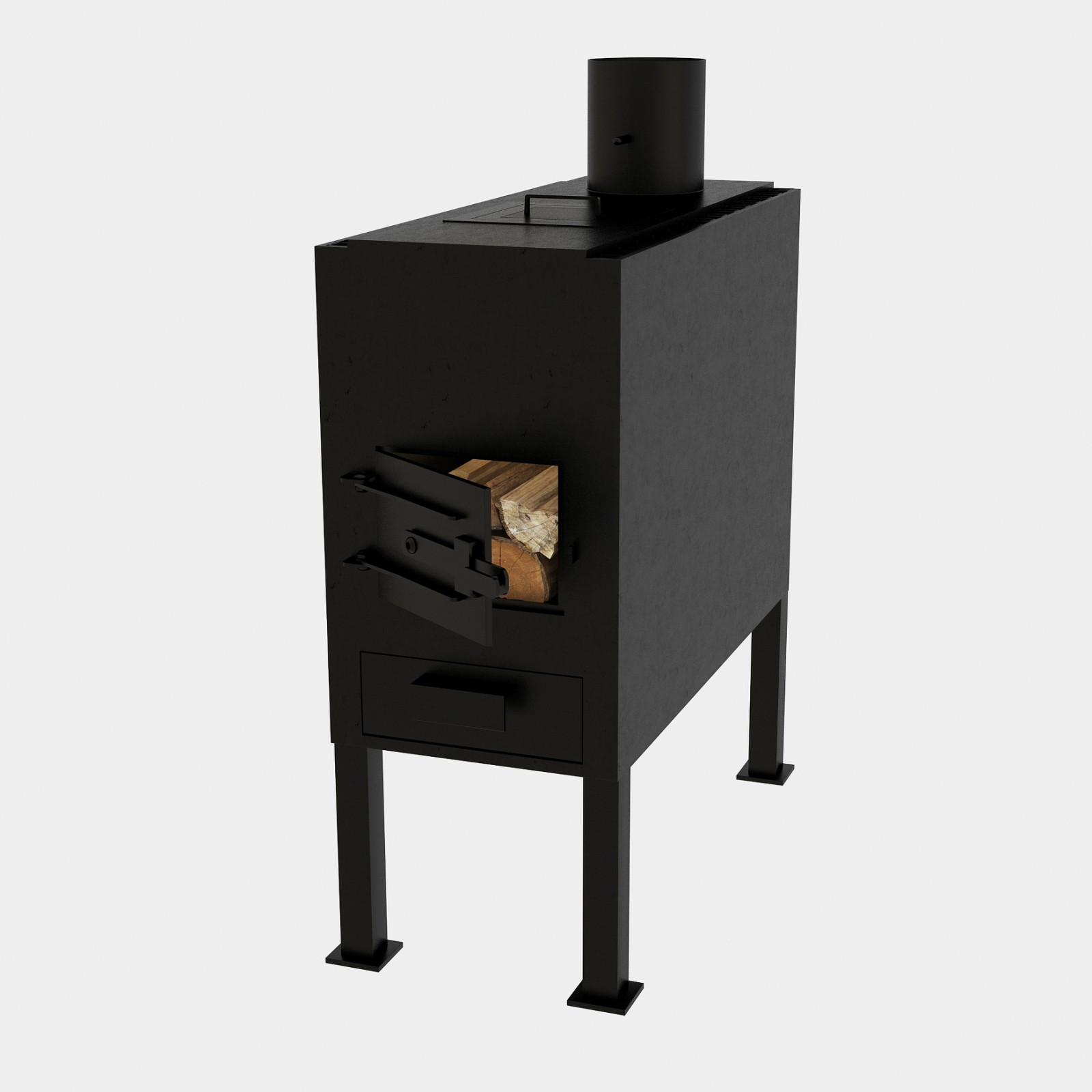

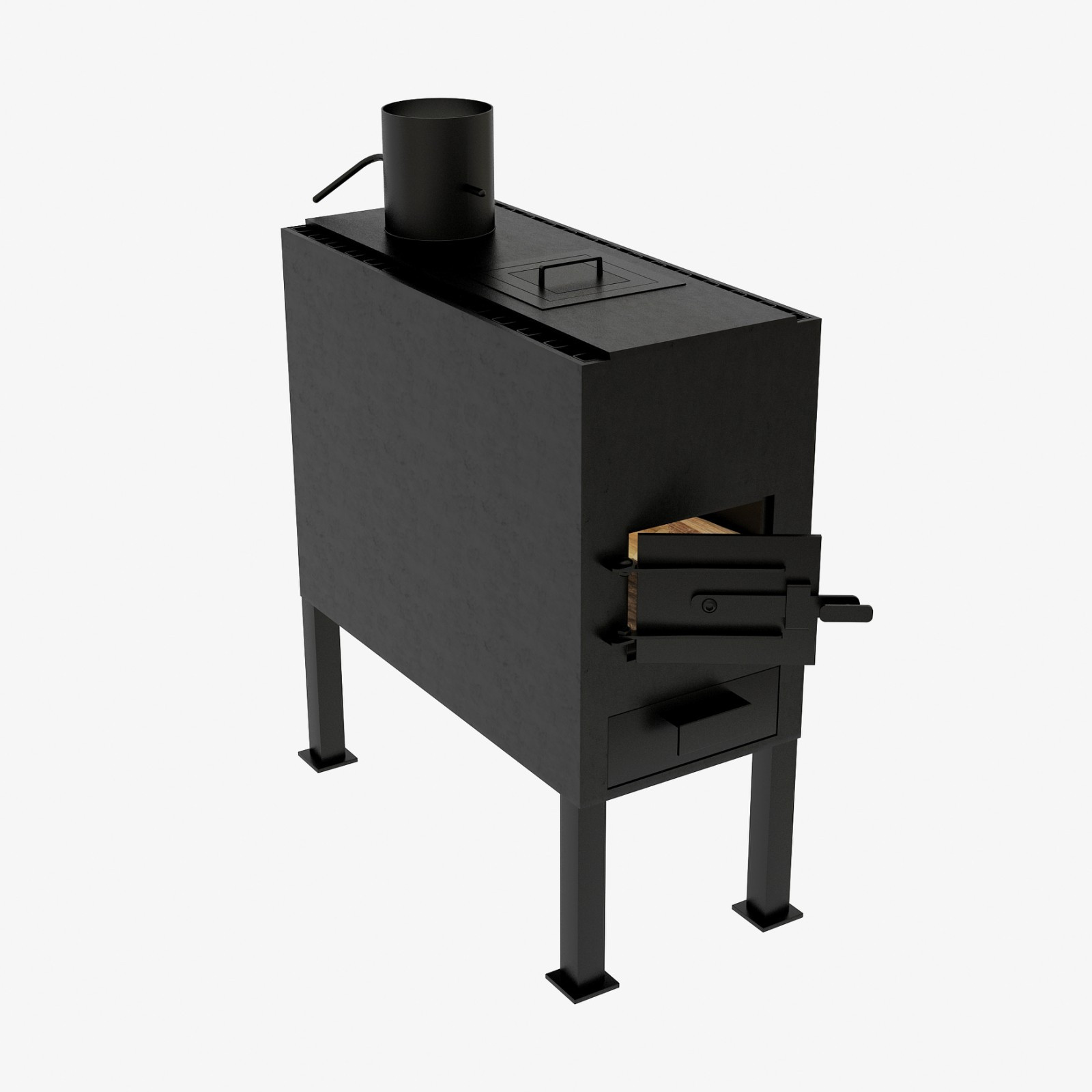

Solid fuel stove #001

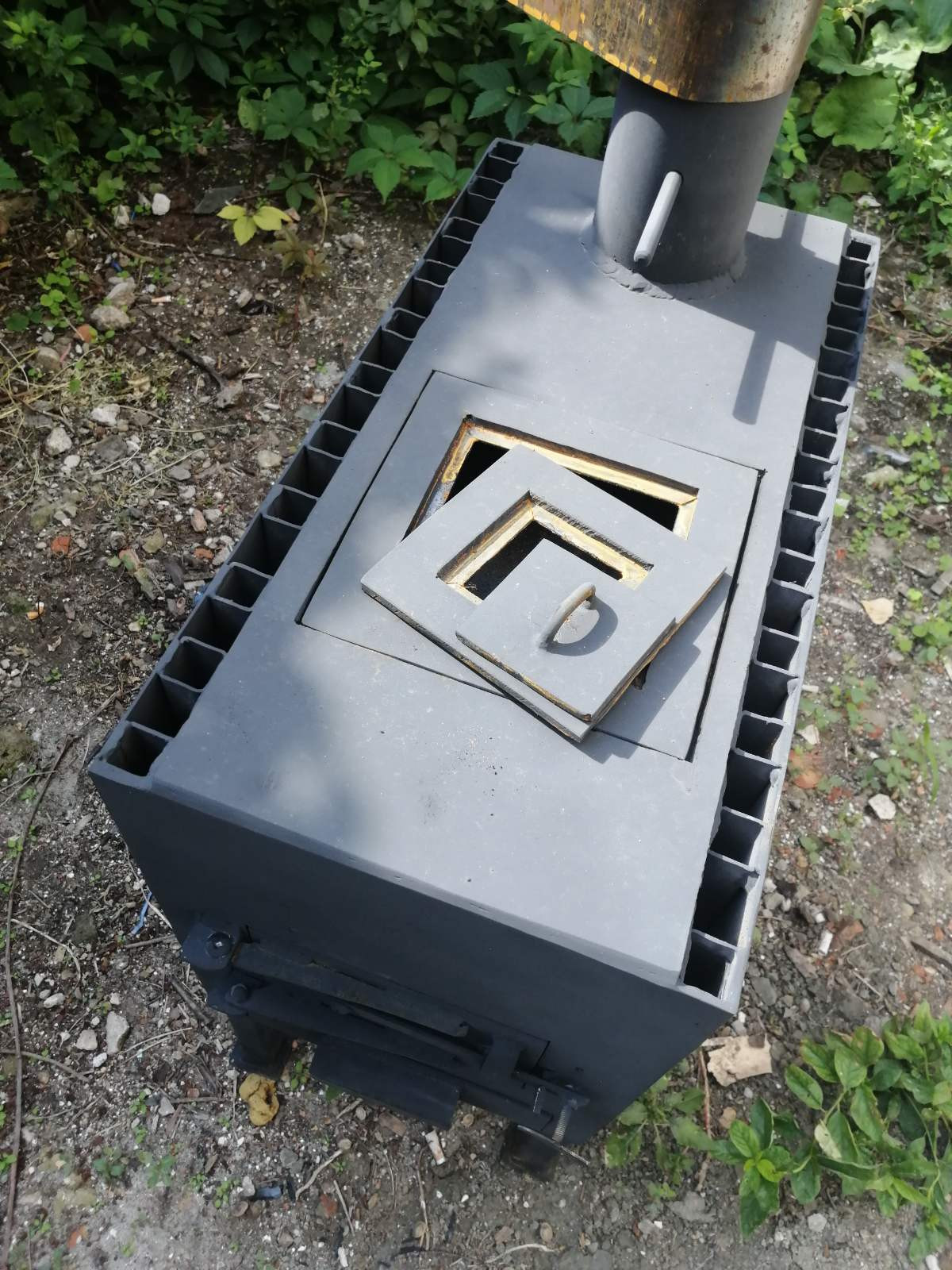

Designed for premises from 30m2 to 60m2. The top of the stove is made of sheet steel with a thickness of 6 mm. Side walls - sheet steel 3 mm and profile pipe 20x20x20. Thanks to profile pipes welded to the side walls, which are additionally covered with 2 mm sheet steel, the stove has additional convection power. After all, cold air enters the pipes on the side walls from below and warms up and leaves from above, which provides additional heating of the room.

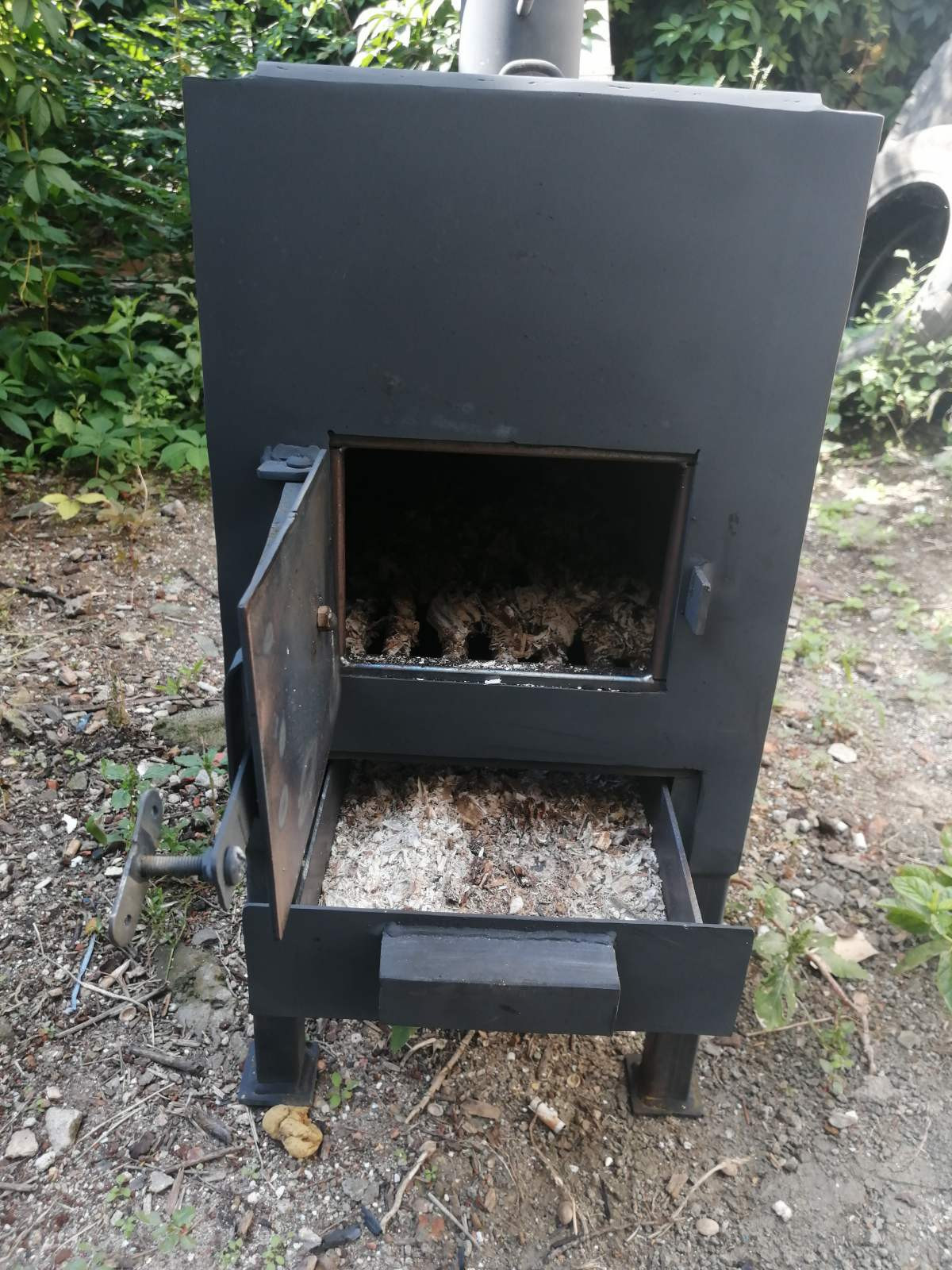

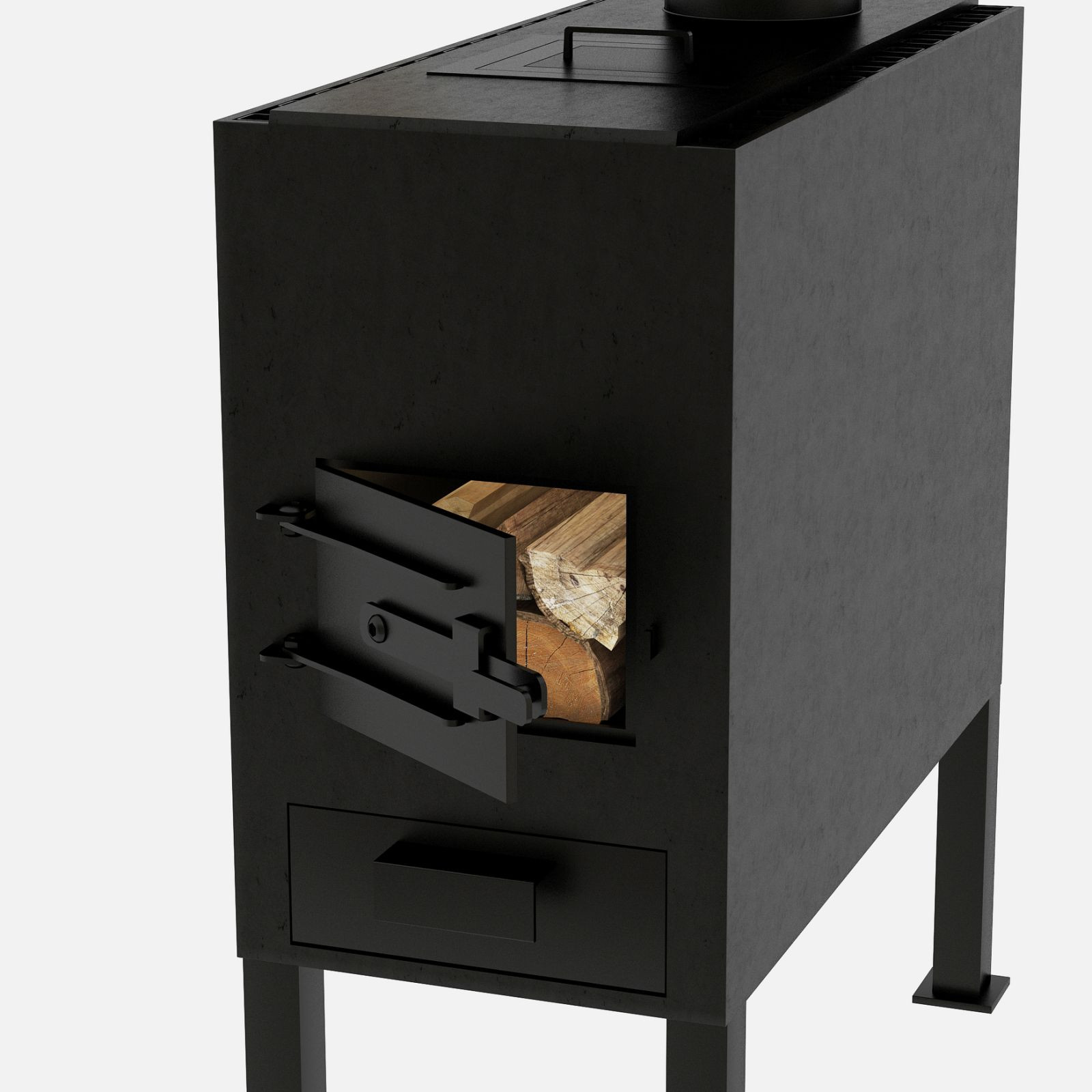

The bottom of the oven is 2 mm. Due to the internal design of the stove and the presence of a cut-off, which is made of 2 mm sheet steel, in the combustion chamber, the stove keeps heat for a long time, which also allows you to significantly extend the burning period of firewood that is placed in the stove. Also, the furnace has grates made of 10 mm reinforcement and an ash tray made of sheet steel 2 mm. The grates prevent the wood in the stove from heating up the bottom of the stove too much, which significantly extends the life of the stove. The ashtray has an additional door and it is easy to remove and shake out all the residue after burning wood.

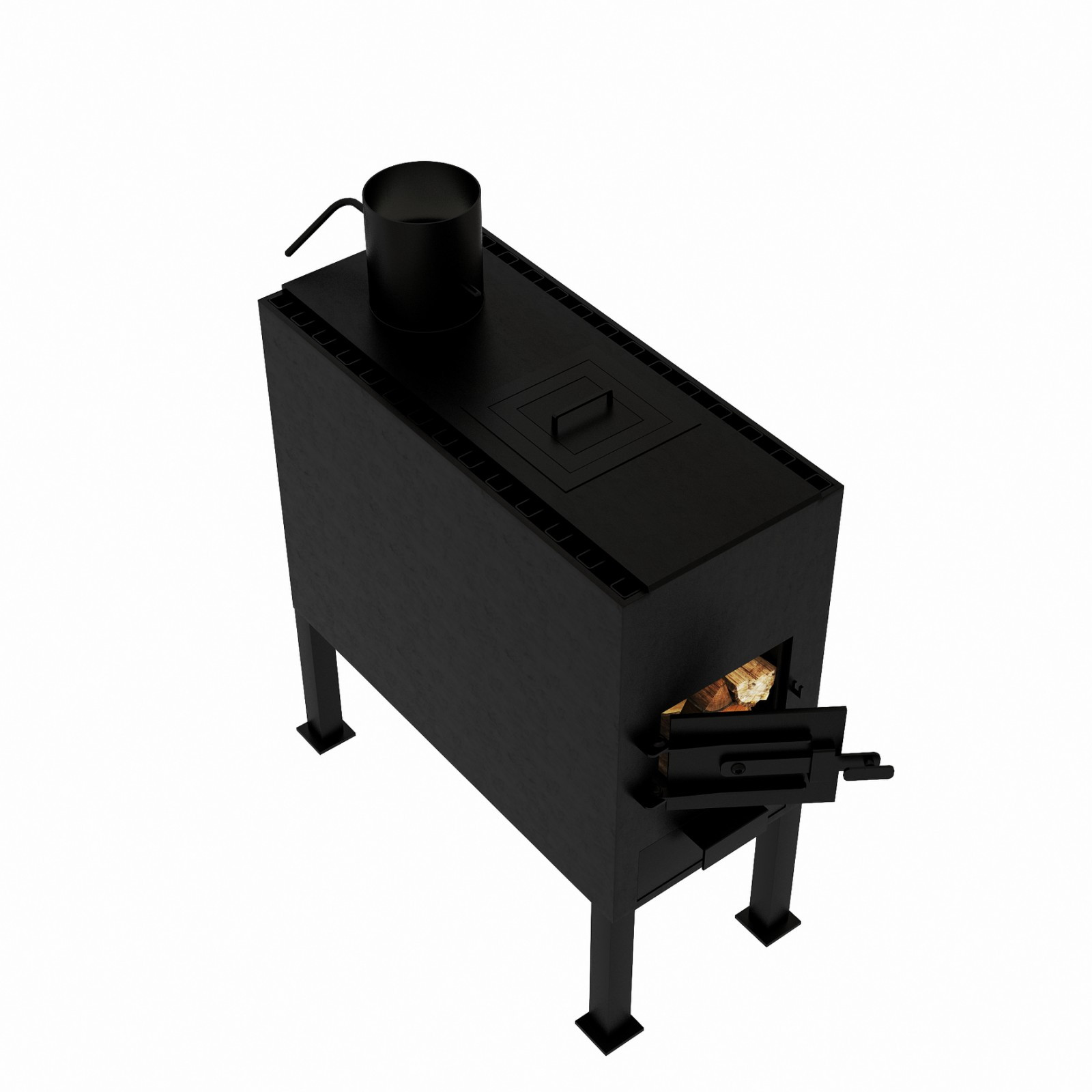

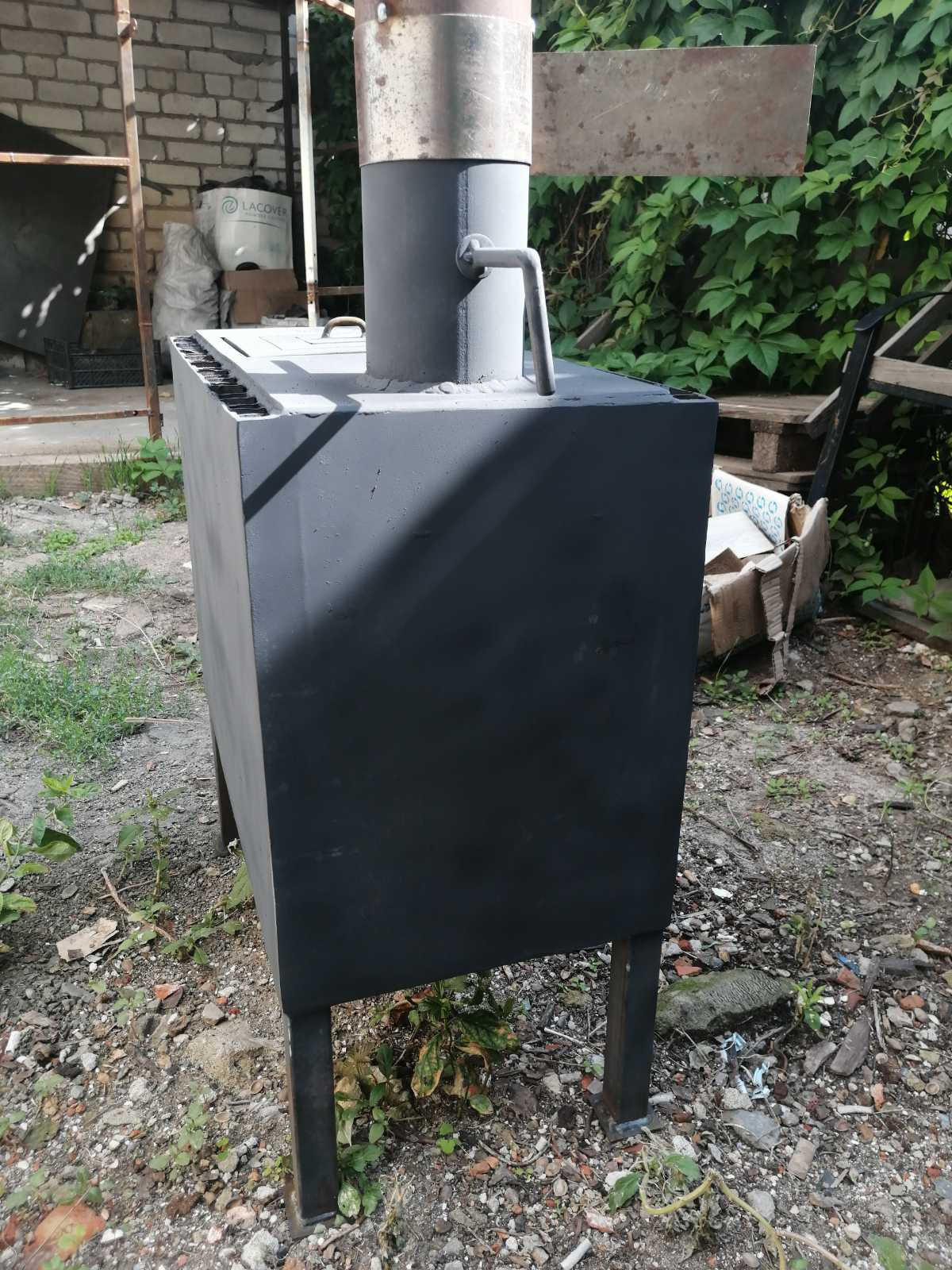

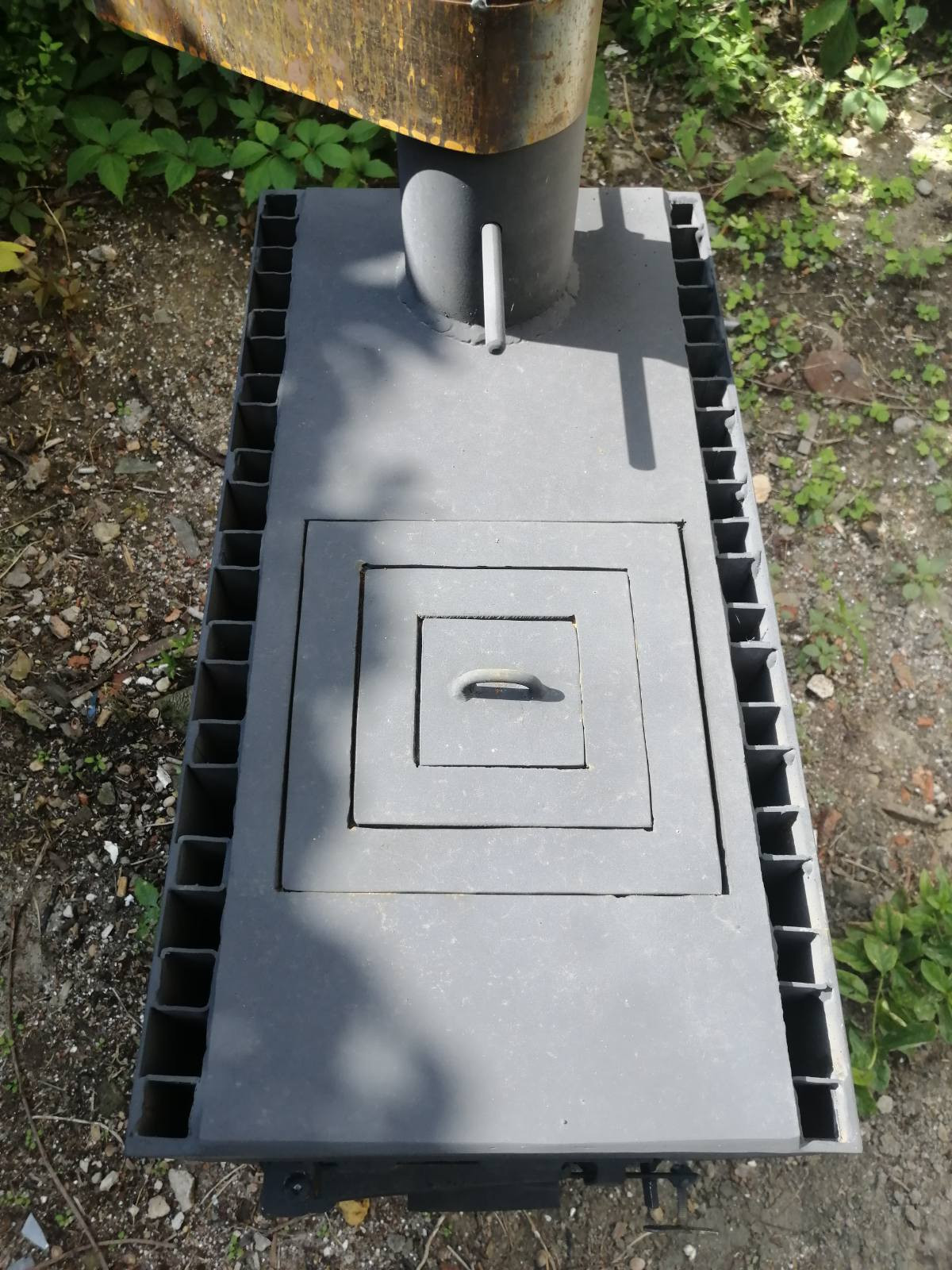

On top of the stove there is a place for a smoke exhaust pipe with a diameter of 102 mm. The pipe has a damper in it, thanks to which you can adjust the intensity of the burning of the stove.

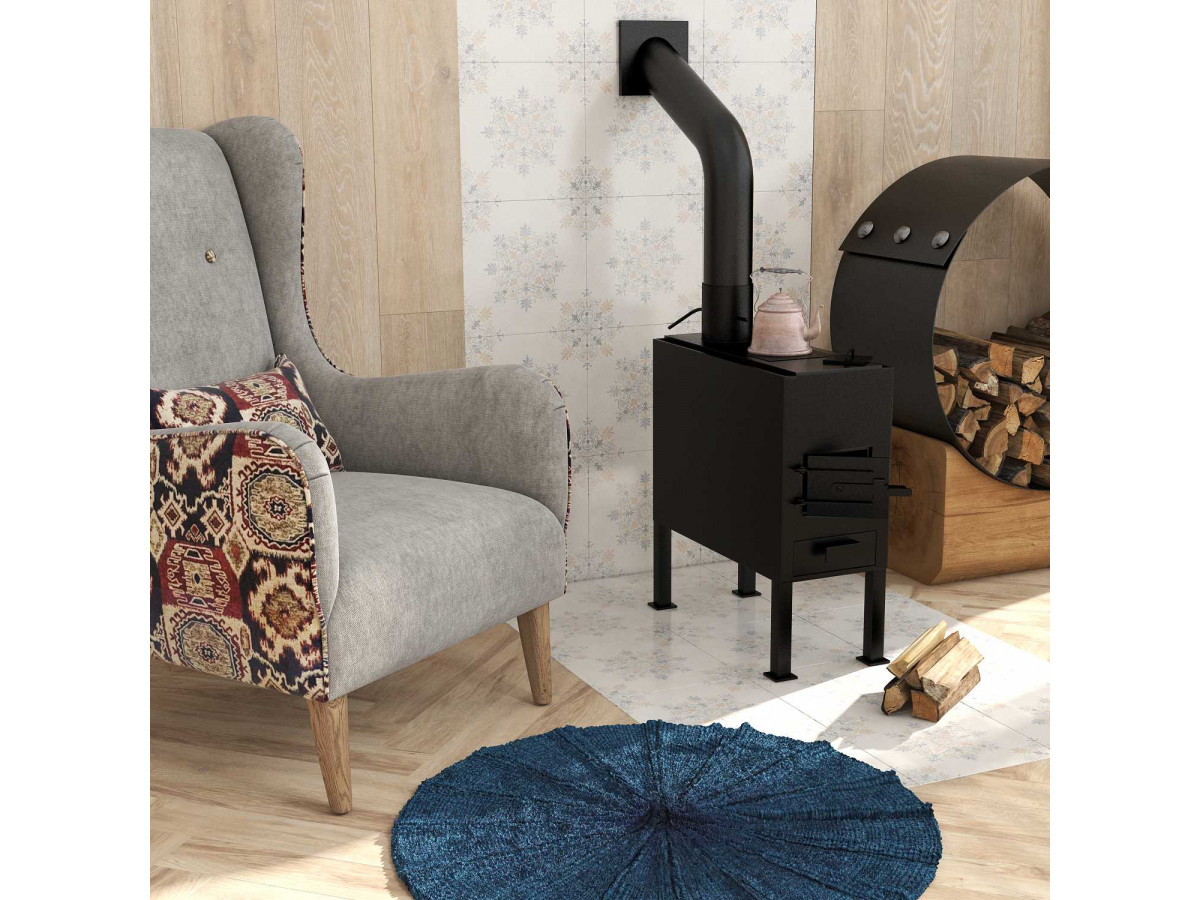

If necessary, you can additionally equip the furnace with a pipe and elbow.

Overall dimensions 610x570x300mm.

One stack of firewood is enough for about 3 hours.
